Aerial Photographs

SMO undertakes aerial photography in the territory of Hong Kong periodically at different altitudes producing various types of aerial photographs including colour, false colour infrared and oblique aerial photographs. Copies of these aerial photographs in the form of duplicate and enlargement are obtainable on order. The recommended enlargement ratio of most aerial photographs is up to 8 times depending on the quality of the images.

SMO maintains a Map and Aerial Photograph Library for inspection of aerial photographs by the public in the headquarters at 23/F, North Point Government Offices, 333 Java Road, Hong Kong. Digital images of aerial photographs are also available for viewing at "Hong Kong Map Service Kiosk" at all SMO Map Sales Outlets.

SMO keeps aerial photographs from 1924 to the present. Members of the public are welcome to visit the Library or Map Sales Outlets to search and/or place order for the aerial photographs they want. Please click here to access Download Area for free download of aerial photographs.

Colour - Vertical (Full Frame)

DAP-L0 Colour - Vertical (Full Frame)

Photo size: 10 x 10 inch


Black and White - Vertical (Full Frame)

DAP-L0 Black and White - Vertical (Full Frame)

Photo size: 10 x 10 inch


Colour - Vertical (Full Frame)

DAP-L0_RGB Colour - Vertical (Full Frame)

Photo size: 12 x 8.5 inch


False Colour Infrared - Vertical (Full Frame)

DAP-L0_CIR False Colour Infrared - Vertical (Full Frame)

Photo size: 12 x 8.5 inch


Colour - Oblique (Full Frame)

DAP-L0_RGB Colour - Oblique (Full Frame)

Photo size: 12 x 8.5 inch

False Colour Infrared - Oblique (Full Frame)

DAP-L0_CIR False Colour Infrared - Oblique (Full Frame)

Photo size: 12 x 8.5 inch

Price of Aerial Photographs - Paper (PDF Format)

Digital Aerial Photo (DAP)

The Digital Aerial Photo (Series: DAP), which is one of the SMO digital map products, is the digital format of an aerial photograph produced from its original aerial film (taken by Lands Department from Year 1963 to mid-2016) by means of scanning at a resolution of 1,800dpi or better with a high-precision photogrammetric scanner. The DAP is suitable for photogrammetric measurement. In purchasing the DAP, the relevant camera calibration report, if available, would be provided.

The DAP is provided in TIFF Format and the delivering media is DVD. The file size of Black & White and Colour aerial photograph images is about 300MB and 1.1GB respectively. Customers can order the DAP at the Hong Kong Map Service website.

Black and White - Vertical (Full Frame)

Black and White - Vertical (Full Frame)

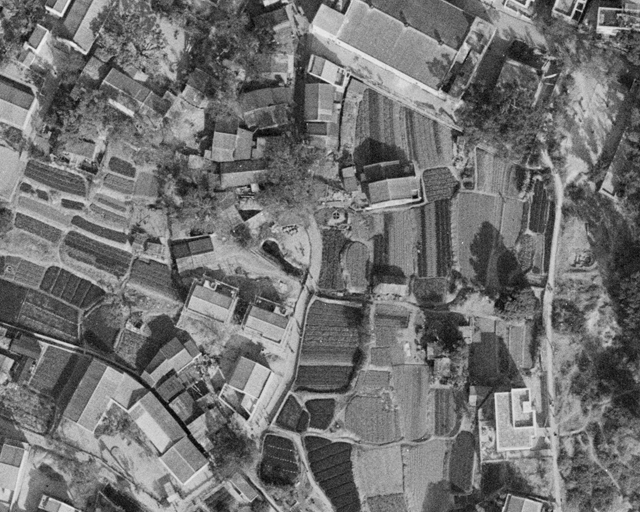

Black and White - Vertical (Portion)

Black and White - Vertical (Portion)

Colour - Vertical (Full Frame)

Colour - Vertical (Full Frame)

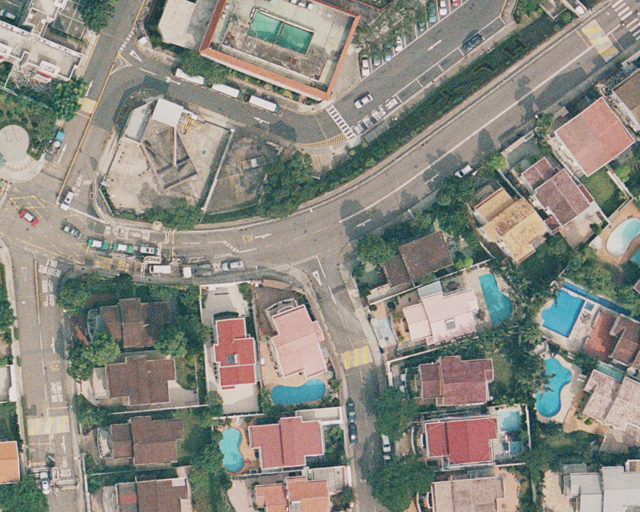

Colour - Vertical (Portion)

Colour - Vertical (Portion)

Digital Aerial Photo (UE Version) (DAP-UE)

The Digital Aerial Photo (UE Version) is the digital aerial photograph captured by the large format digital aerial camera which was put in commission in mid-2016. The digital aerial camera is able to capture five spectral bands information (Panchromatic, Red, Green, Blue and Near-infrared). The dynamic range of the colour information is higher than 12-bit. A total of three products, DAP_RGBI, DAP_RGB and DAP_CIR, are generated for each shot. Photo information, for example photo number, date of flight, flying height etc., is kept in the EXIF data instead of presenting on the image.

DAP_RGBI is digital aerial photograph in 16-bit file format consisting of four spectral bands (Red, Green, Blue and Near-infrared) with a file size about 2GB. No radiometric correction or colour balancing is applied in order to retain the original colour to facilitate spectrum study.

DAP_RGB and DAP_CIR are digital aerial photographs in 8-bit file format with radiometric correction applied with a file size about 760MB. DAP_RGB is RGB colour image (consisting of Red, Green and Blue bands) while DAP_CIR is false colour infrared image (consisting of Near-infrared, Red and Green bands).

The DAP-UE is suitable for photogrammetric measurement. In purchasing the DAP-UE, the relevant camera calibration report would be provided.

The DAP-UE is provided in TIFF Format with World File, the georeference information stored in World File is only for general position only. The delivering media is DVD. Customers can order the DAP-UE at the Hong Kong Map Service website.

DAP_RGBI - (Full Frame)

DAP_RGBI - (Full Frame)

DAP_RGB - (Full Frame)

DAP_RGB - (Full Frame)

DAP_CIR - (Full Frame)

DAP_CIR - (Full Frame)

Digital Aerial Photo (L0 Version) (DAP-L0)

The Digital Aerial Photo (L0 Version) is a compressed image of the afore-mentioned Digital Aerial Photo (DAP). Digital Aerial Photo (UE Version) (DAP-UE) or the scanned image of a print of an aerial photograph, whichever is available, which is saved in 300 dpi image resolution and JPEG format with a file size about 2-3 MB.

The DAP-L0 can be used to support a wide range of applications, e.g. different types of web-services showing bird's-eye view, desktop photo printing and illustration in reports and presentations, etc., with superb quality at a lower cost than the price of a DAP.

Customers can order the DAP-L0 at the Hong Kong Map Service website.

DAP-L0
Black and White - Vertical (Full Frame)

DAP-L0 Black and White - Vertical (Full Frame)


Colour - Vertical (Full Frame)

DAP-L0 Colour - Vertical (Full Frame)

False Colour Infrared - Vertical (Full Frame)

DAP-L0 False Colour Infrared - Vertical (Full Frame)

DAP-L0_RGB
Colour - Vertical (Full Frame)

DAP-L0_RGB Colour - Vertical (Full Frame)


Colour - Oblique (Full Frame)

DAP-L0_RGB Colour - Oblique (Full Frame)

DAP-L0_CIR
False Colour Infrared - Vertical (Full Frame)

DAP-L0_CIR False Colour Infrared -  Vertical (Full Frame)


False Colour Infrared - Oblique (Full Frame)

DAP-L0_CIR False Colour Infrared -  Oblique (Full Frame)

Price of Digital Aerial Photo (PDF Format)
